H Beam: The Indispensable Main Load-Bearing Member for Modern Steel Structure Construction

H Beam: The Indispensable Main Load-Bearing Member for Modern Steel Structure Construction

We have previously introduced angle steel for frame support and steel plate for basic structural base. Today we focus on H beam, the core load-bearing main beam of all steel structure projects.

If angle steel is the auxiliary supporting part and steel plate is the basic flat material for steel structures, H beam acts as the main backbone of factories, high-rise buildings and bridges.

Named after its H-shaped cross section, H beam adopts optimized force-bearing structure. It features strong bending resistance, light self-weight and convenient installation. Nowadays, most large-span industrial workshops, high-rise steel buildings, municipal bridges, stadiums and high-speed railway platforms all adopt H beam as the main load-bearing structural component.

This blog covers full knowledge of H beam, including definition, classification, steel grades, core advantages, application scenarios and purchasing tips, suitable for steel industry practitioners and global buyers.

1. What is H Beam?

H beam is a hot-rolled economic section steel with standard H-shaped cross section, consisting of two parallel flanges and one middle web. Its flanges have equal thickness without inner slope, bringing more reasonable stress distribution.

Different from ordinary I-beam, H beam has wider flanges, better bending resistance and easier on-site connection. It is specially designed for vertical load bearing and horizontal anti-bending, and has become the most popular primary structural steel in modern construction industry.

2. Two Main Types of H Beam

H beam is mainly divided into hot rolled H beam and welded H beam with huge differences in performance and usage:

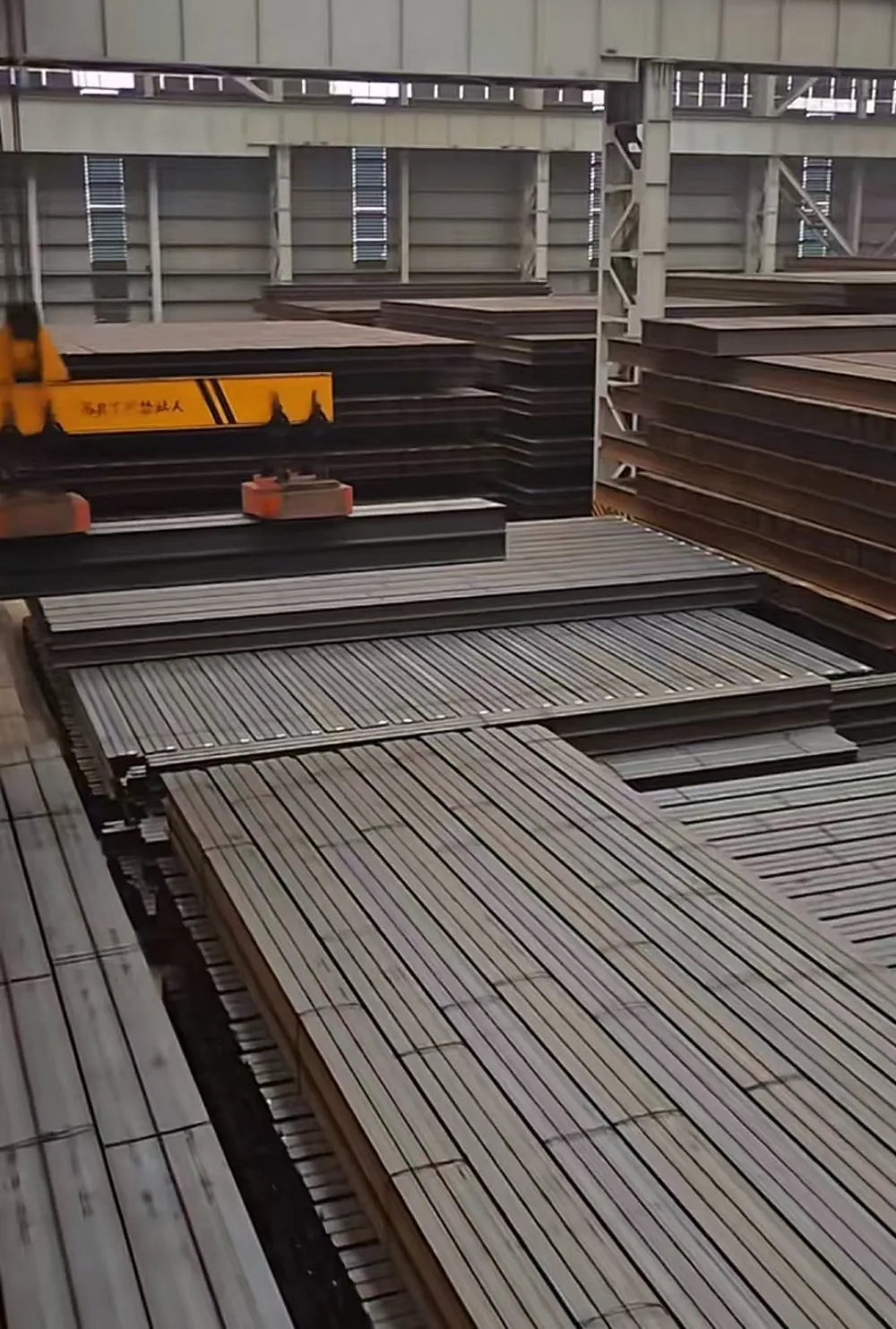

Hot Rolled H Beam (Standard Stock Product)

Formed by one-time hot rolling in steel mills, integrated seamless structure with uniform strength, no welding defects and high dimensional accuracy.

✅ Applications: Main beams of large workshops, high-rise steel structures, bridge main frames, load-bearing columns. It is the first choice for formal engineering projects with sufficient stock and short construction period.

Welded H Beam (Custom Non-standard Product)

Made of three pieces of steel plates through cutting and welding. Its height, flange width and thickness can be customized freely without fixed mill specifications.

✅ Applications: Special-shaped steel structures, super-large non-standard components, special-span workshops and special engineering projects with customized size requirements.

3. Common Steel Grades & Specification Marking

Main Steel Grades

1. Q235B H Beam

General carbon structural steel with good weldability, excellent plasticity and competitive price. Ideal for low-rise steel buildings, steel canopies, ordinary brackets and common civil engineering projects.

2. Q355B H Beam

High-strength low-alloy steel with 40% higher strength than Q235B. It owns outstanding low-temperature resistance, deformation resistance and seismic performance, perfectly suitable for long-span workshops, high-rise buildings, bridges and projects in cold regions.

Specification Marking Standard

Height × Flange Width × Web Thickness × Flange Thickness

Example: 400×200×8×13

4. Core Advantages of H Beam

Why H beam has replaced traditional I-beam in most modern steel structure projects?

1. Optimized Section & Excellent Bending Resistance

Wide and parallel flanges ensure uniform stress distribution. Its horizontal anti-bending and anti-lateral force performance is far better than I-beam of the same specification, avoiding structural deformation for long-span buildings.

2. Light Weight & Lower Project Cost

Under the same load-bearing requirement, H beam needs less steel consumption than I-beam and other section steels. It reduces overall building weight and foundation pressure, cutting down total construction cost effectively.

3. Fast On-site Installation

Flat flange surface supports direct bolt connection and welding without extra groove processing. It greatly improves construction efficiency and shortens project period.

4. Superior Seismic Performance & High Structural Stability

High overall rigidity prevents twisting and deformation. It meets strict seismic requirements of high-rise and long-span construction projects, improving overall building safety.

5. Complete Specifications & Wide Compatibility

Full range of standard sizes covers small support columns and large-span main beams, matching all kinds of steel structure projects from small steel canopies to large industrial plants.

5. Wide Application Scenarios

🏭 Industrial Steel Workshops: Steel columns, roof main beams, floor load-bearing beams, overall workshop frames

🏗️ High-rise Buildings: Steel frames of high-rise office buildings and residential buildings, prefabricated building main beams

🌉 Municipal Traffic Projects: Road bridges, pedestrian overpasses, high-speed railway platforms, viaduct load-bearing structures

🏟️ Large Venues: Stadiums, exhibition centers, long-span warehouse roof frames

🚧 Other Engineering Fields: Equipment bases, foundation pit supports, steel structure overpasses

6. H Beam Purchasing Guide to Avoid Defective Products

1. Distinguish Standard & Non-standard Products: Choose national standard H beam for main load-bearing structures. Non-standard H beam with big thickness tolerance cannot meet load requirements and brings potential safety hazards. Non-standard products are only suitable for temporary simple brackets.

2. Choose Proper Type: Select hot rolled H beam for regular projects for stable quality and fast delivery; choose welded H beam only for special non-standard size demands.

3. Do Not Mix Steel Grades: Never replace Q355 high-strength H beam with Q235 grade for high-rise, long-span and outdoor cold-region projects.

4. Surface Inspection: Qualified H beam has no distortion, cracks, delamination or rolling defects with straight flanges and regular cross section.

Final Thoughts

Angle steel builds frames, steel plates forms foundations, and H beam supports the whole main structure.

These three typical steel products constitute a complete steel structure system. With economic section design, high strength and easy installation, H beam has become an irreplaceable core material for modern prefabricated construction.

Every towering steel workshop and cross-river bridge is supported by solid H beams. Ordinary steel section, extraordinary structural support power.

💬 Discussion: What size of H beam do you usually use in your projects? Which grade is more popular for you, Q235B or Q355B? Leave your comments below!
